Description

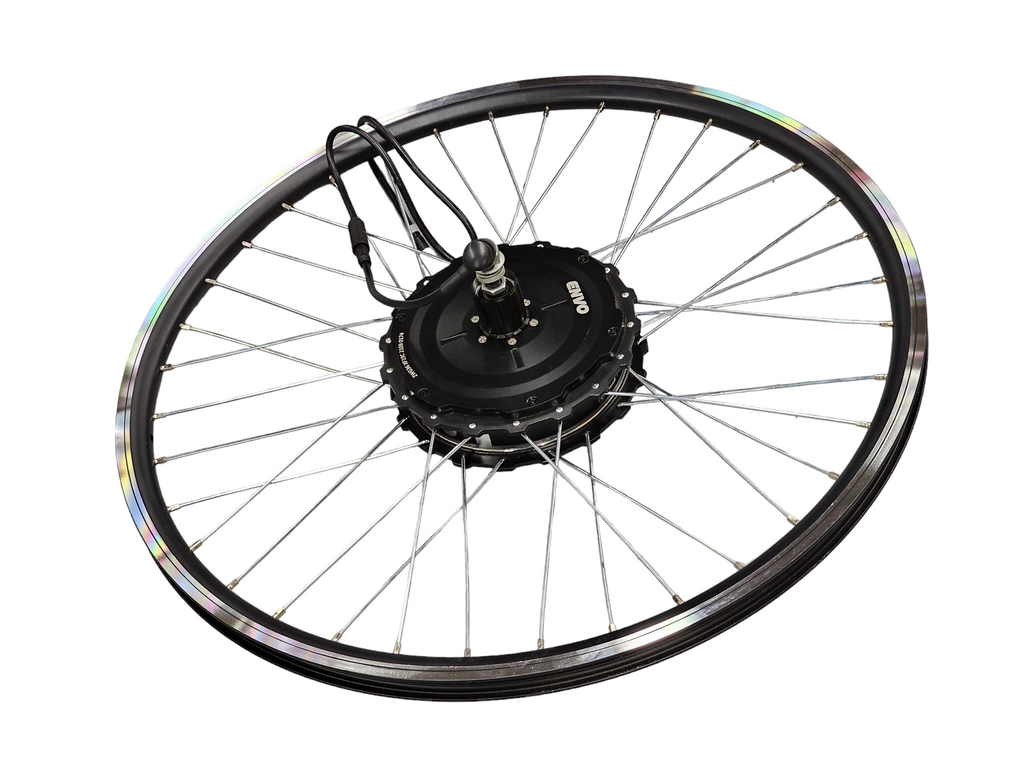

geared hub motor 48V 500W/750W Front Geared Hub Motor KitAvailable Rims 27. 5'' 48V 500W 750W Geared hub motor kit Motor weight 4kg Motor peak torque 100Nm Suitable for utility or heavy duty bikes Not recommended for commuters or urban use Description: 900W Max Power using 48V 20A controller 40km h (limited to 32km h) or 1200W using 48V 25A controller, 50km h (limited to 32km h), front hub motor, small size with simple structure, light weight and long life, super power, high efficiency, beautiful, high
Available Rims
27.5''
48V 500W/750W Geared hub motor kit
Motor weight 4kg
Motor peak torque 100Nm
Suitable for utility or heavy duty bikes
Not recommended for commuters or urban use
Description:
900W Max Power using 48V 20A controller 40km/h (limited to 32km/h) or 1200W using 48V 25A controller, 50km/h (limited to 32km/h), front hub motor, small size with simple structure, light weight and long life, super power, high efficiency, beautiful, high speed motor with gear, drive is very free and fluent, best choice for Li-ion battery on e-bike for rough road, higher weights and higher grade-ability.- Motor Type: DC Brushless Geared Hub Motor
- Motor Power: 500W/750W
- Voltage: 48V
- Max Torque: 100Nm @20A, 125Nm @25A
- Efficiency ≥80%
- 36 Spokes
- Flange for disc brake
- Waterproof connector
- Axle=100mm, Diameter=177mm.
- Weight=4kg
- Phase angle 120 degree
- Manufacturer: MXUS
- Waterproof and protection grade: IP54
- Noise level 55dB
- CE, EN15194 certifications
- Wheel, A356 Aluminum
- Magnet, 38SH
- Wire(winding), QZ-3/155
- Iron core, DW470
- Bearing, C&U
